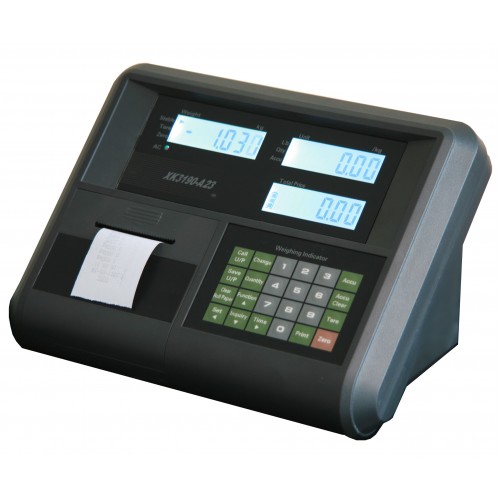

Weighing indicator Xk3190-A23P is a price-computing indicator with three LCD display windows and built-in printer. It is able to apply in static weighing system equipped with 1-4 load cell such as electronic platform scale, electronic floor scale etc.

  Standard price-computing function

  Standard built-in stylus printer

  Able to save and call 100 unit prices

  Accumulation function, including accumulation display and accumulation clear,

able to select to print details and accumulation note

  Able to inquiry the saved records by pressing the buttons

  Able to select items to print freely

  Simply counting function, and able to price-computing by the quantity

  Able to save, inquiry and print 1000 weighing records

  Standard RS232 interface, and optioanl communication format

  Optional high-low limits alarm function

  Optional KG/LB one-key switch function

  Accuracy class:   III

  Max verified counts: 3000

  Input signal range: -16 ¨C 18mV

  AD conversion method: ¦²-¦¤

  Load cell excitation: DC 5V

  Load cell connection mode: 4 wire

  Number of connection load cell: 1 ¨C 4 at 350¦¸

  Power supply: AC220V, 50Hz; DC built-in 6V/5AH rechargeable battery

  Time for preheat: 15 minutes
