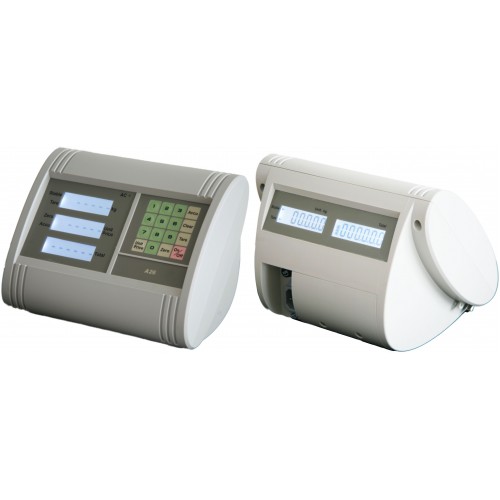

XK3190-A26

XK3190-A26 is a price computing weighing indicator with five-window LCD display, widely applied in electronic platform scale, floor scale, and so on alike static weighing system equipped with 1 load cell.

  Large capacity battery, low power consumption. 100-hours back up after full charge(without backlight)

  High precision ¦²-¦¤ analog/digital conversion technology

  AC/DC power supply ,including 4V/4.5AH chargeable battery, with rest power indication and auto power off function

Standard Function:

  Price computing function, double-side display.

  Value accumulate, accumulation display,accumulation clear.

  Low power consumption mode optional

  Able to save and call 10 records of unit price

  Option(for only 1)

1.RS232 communication port(to connect with PC)

2.Serial port micro-printer

3.Scoreboard communication

4.High-low limits beep function (oc output)

  Display mode:

Double-side LCD display and super light LED back light

Front display:5+5+6 digits, 4 status indications, 3-grade battery indication

Back display:5+6 digits, 2 status indications, 3-grade battery indication

  Signal input range:    -16~18mV

  Load cell excitation:   DC 3V

  Max. connection number of load cell: 1

  Load cell connection mode: 4 wire

  Verified counts: 3000
