Indicator Rinstrum R310

;

Indicator Rinstrum R310 là loại cân rất tiện dụng và được ưa chuộng. Indicator Rinstrum R310 còn là loại cân được thiết kế với độ chính xác cao và ưu điểm vượt trội. Các bạn hãy liên hệ với công ty chúng tôi để có Indicator Rinstrum R310 chất lượng, giá rẻ. Để biết thêm chi tiết xin vui lòng liên hệ Công ty cân điện tử Hưng Thịnh - Điện Thoại : ( 08 ).3512.34.53, Fax : ( 08 ).3512.34.54 Website : www.canhungthinh.com.

Indicator Rinstrum R310

Indicator Rinstrum R310 la loai can rat tien dung va duoc ua chuong. Cac ban hay lien he voi cong ty chung toi de co Indicator Rinstrum R310 chat luong, gia re. De biet them chi tiet xin vui long lien he cong ty can dien tu Hung Thinh - Điện Thoại : ( 08 ).3512.34.53, Fax : ( 08 ).3512.34.54 Website : www.canhungthinh.com.

  • sanyo
  • cty cp tin nghia
  • ngan hang vpbank
  • cty nhua tan tien
  • Vincom
  • vina acecook
  • HOA SEN
  • miwon
  • dau tuong an
  • công ty uni-president
  • Petro
  • NTaco
  • TBRC
  • JVF
  • CP
  • TIGI
  • cty AJINOMOTO
  • Kirby
  • Vissan
  • cty unilever
  • cocacola
  • cty cp bia sai gon
  • cty Vietnam FS Corp
  • cty dongsung amata
Danh mục sản phẩm
Slider6 Slider3 Slider1 Slider2 Slider4 Slider5

Indicator Rinstrum R310, Indicator Rinstrum R310

Indicator Rinstrum R310, Indicator Rinstrum R310
Indicator Rinstrum R310, Indicator Rinstrum R310 - image1 Indicator Rinstrum R310, Indicator Rinstrum R310 - image2 Indicator Rinstrum R310, Indicator Rinstrum R310 - image3 Indicator Rinstrum R310, Indicator Rinstrum R310 - image4

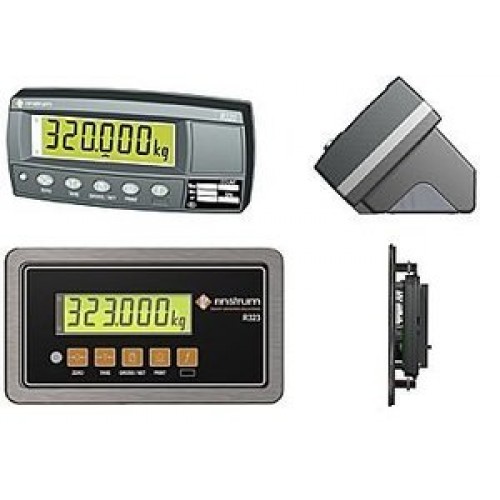

The Rinstrum R310 is a compact digital weighing indicator that is NMI trade-approved to 4,000 divisions. Power options include, 12-24VDC or 4 x AA batteries. It can be panel, desk or wall mounted. The unit's software is run from flash memory and can be upgraded in the field using the rin-Link connection.

The programmable function key can be configured for any one of the built-in functions (Counting, Manual Hold, Peak Hold, Live Weight Totalising). The built-in RS-232 serial port is 15kV protected. Two isolated setpoint outputs provide for basic weight-control or level-control functions.

Key Features

  • Trade to 4,000 Divisions
  • Internal Battery Option
  • 20mm LCD Display
  • Bright LED Backlighting
  • Special High-Level Functions
  • Tough, Compact ABS Housing
  • rin-LINK Connector

Specifications

Performance

  • Resolution Up to 30,000 Divisions, Minimum of 0.25mV/Division, 20 Updates per Second (Trade-Approved for 4,000 Divisions at 0.8mV/Division)
  • Zero Cancellation ±2.0mV/V
  • Span Adjustment 0.1mV/V to 3.0mV/V Full Scale
  • Stability/Drift Zero: <0.1uV/°C (+8ppm of Deadload Maximum)
  • Span: <8ppm/°C, Linearity <20ppm, Noise <0.2mVp-p
  • Excitation 5V for Up to 4 x 350O Loadcells (4-Wire or 6-Wire Plus Shield)
  • A/D Type 24 Bit Sigma Delta with 8,388,608 Internal Counts
  • A/D Conversion Rate 20Hz with FIR Filtering >80dB
  • Operating Environment Temperature: -10 to +50°C Ambient, Humidity: <90% Non-Condensing

Digital

  • Display LCD - Six 20mm High Digits Plus Units and Annunciators - LED Backlight
  • Setup and Calibration Full Digital with Visual Prompting in Plain Messages
  • Digital Filter Sliding Window Average from 0.1 Second to 4.0 Seconds
  • Zero Range Adjustable from ±2% to ±20% of Full Capacity

Power Input

  • Standard 12 to 24VDC (2.5VA Maximum) - ON/OFF Key with Memory Feature
  • Variant - AC AC Plug Pack: 110/240VAC, 50/60Hz In - 12VDC, 0.5A Out
  • Variant - Battery 4 x AA Batteries (Rechargeable 2.5Ah NiMH)

Features

  • rin-LINK Data Coupling I.R. Data Coupling for Optional rin-LINK Cable (to RS-232 PC Port)
  • Ten Point Linearity Correction
  • RS-232 Automatic Transmit, Network or Printer Driving
  • Assignable Function Key: Unit Switching, Counting, Manual Hold, Peak Hold and Animal Weighing
  • 2 x Isolated Transistor-Drive Outputs
  • Battery Backed Clock and Calendar
  • Approvals: NMI Certificate No. S420, CE, FCC, C-Tick
